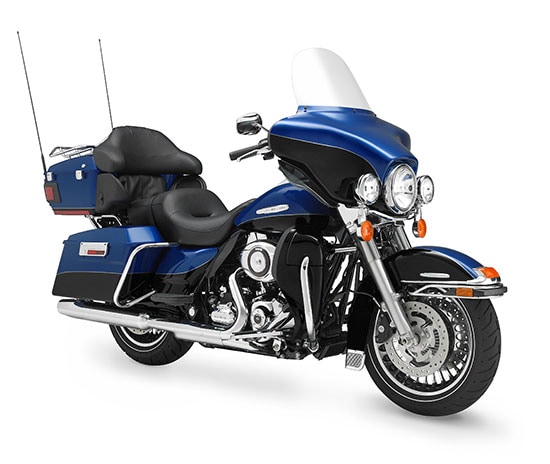

The Ultra Limited comes with new contrast chrome 28-spoke cast aluminum wheels with narrow whitewall tires. A new two-tone paint scheme comes in three color combinations. The bike comes with a black powder-coated power train with chrome covers. A chrome 2-1-2 dual exhaust with tapered mufflers exhibits style and class. A bat-wing, fork-mounted fairing is standard and comes with the addition of a Lexan windshield for those long grueling rides. Smoked Lexan adjustable fairing-mounted air deflectors are a nice addition to this bike. Vented removable lower fairings with nice size storage compartments come standard. The bike's front fender comes with a stylish trim. A chrome, low-profile fuel tank console sits comfortably on the front of the bike. The Ultra Glide Limited also receives a classic, stainless steel touring handlebar. This bike is equipped with the one-piece, two-up Electra Glide classic comfort stitch seat. Nice size passenger backrests with wrap-around armrests are a welcome addition to the bike. Injection-molded hard saddlebags with liners and an injection molded hard tour pack with soft luggage liners and storage pockets is a great feature on this bike.
View Our Inventory or Call Us Today! 1-866-751-2695
A premium tour pack luggage rack adds extra space for hauling. Titanium-faced, fairing mounted gauges such as electronic speedometer and tachometer as well as fuel, voltage, oil pressure and ambient air temperature gauges are easy to read. LED white lighting aids in reading the gauges at night. A nice, new feature for the 2010 Ultra Limited is the addition of heated hand grips for those chilly nights.
The engine on the 2010 Electra Glide Ultra Limited is an air-cooled Twin Cam 103 with integrated oil cooler. The valves on the bike are pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. There are two valves per cylinder. The displacement of the engine is 103 cubic inches while the compression ration is 9.7:1. Electronic Sequential Port Fuel Injection is standard. The air cleaner on the bike is washable. The lubrication system is pressurized and dry-sump with oil cooler.
The chassis on the bike contains a mild steel frame as well as a two-piece stamped and welded backbone, cast and forged junctions, twin downtubes and bolt-on rear frame with forged fender supports. The frame is MIG welded. The swingarm on the bike is mild steel as well with a two-piece drawn and welded section and forged junctions. It is MIG welded as well. The front forks are 41.3 mm and are telescopic with triple-circuit damping. The rear shocks on this motorcycle are adjustable. The wheels are contrast chrome 28-spoke cast aluminum.
The brake calipers on the harley motorcycle are 32 mm 4-piston fixed front and rear. The rotors are patented and fixed. The motorcycle offers an Anti-Lock Braking System as an option. Sidecar use is also available if desired.The Electra Glide Ultra Limited's engine is capable of putting out 102 ft. lbs. of torque at 3500 rpm. The battery on this bike is a three-phase, 50-amp. The starter is electric and contains the solenoid shift motor engagement. The headlamp is halogen and produces 55-watts on low beam and 60-watts on high beam. Indicator lamps provide low oil pressure, engine diagnostics, cruise control, and low fuel warnings. The dimensions of the bike include a length of 98.60, a width of 38.0, and a height of 61.0. Ground clearance is 5.10 in., rake is 26 degrees and fork angle is 29.2 degrees.
Tires that come with the Harley are Dunlop-Harley Davidson Series, bias narrow whitewalls. Fuel capacity on the bike is 6 gallons, oil capacity is 4 quarts with a filter, and transmission capacity is 1 quart. Color options for the Electra Glide Ultra Limited are two-tone. These include Scarlet Red/ Vivid Black, Vivid Black/ Black Ice Pearl, and Flame Blue Pearl/ Vivid Black. Custom colors include Merlot Sunglo/Cherry Red Sunglo and White Ice Pearl/ Black Ice Pearl.
Written on Feb. 7, 2011 by Nicholas Ciaccio, Chief Editor
