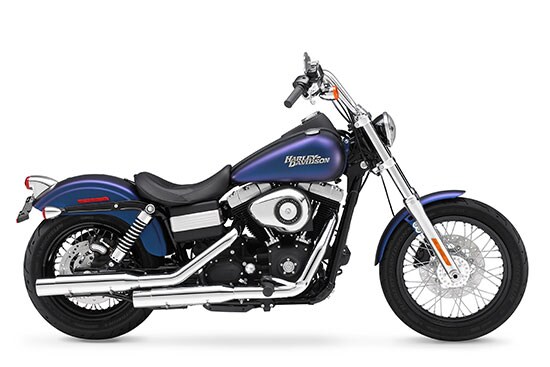

The 2010 Dyna Street Bob's inspiration comes from the post-war bobber design of the past. The Street Bob offer Big Twin performance while delivering great handling and bold styling. The Dyna Street Bob is sure to attract attention wherever a rider chooses to go.

The 2010 Dyna Street Bob features an all-black power-train with Michelin Scorcher tires. The tank on the Street Bob is an all new medallion pattern. The Street Bob also receives the all new Helical cut 5th gear for improved transmission sound. The exhaust on this Harley Davidson is a chrome exhaust with dual straight-cut staggered shorty mufflers. The tank on the motorcycle is 4.7 gallons. The bike is accessorized with black, laced steel wheels. The chopped rear fender does not contain support covers. A solo seat is standard on the bike. The handlebars are a stylish stainless steel, internally-wired ape-hanger design. The motorcycle has a top triple clamp with an integrated riser. A wrinkle-black low-profile tank console with electronic speedometer is integrated into the bike. The wrinkle-black color is also apparent on the battery box and belt guard. A nice retro-style LED tail light sits comfortably on the back of the motorcycle. The Street Bob also gets a nice air-cleaner trim ring.


The engine on the Street Bob is a rubber-mounted Twin Cam 96 V-Twin with Electronic Sequential Port Fuel Injection. The engine is also air-cooled. The torque on the this motorcycle is rated at 92 ft. lbs. A 6-speed Cruise Drive transmission is mounted to the bike. The bike's battery box is exposed and the under the seat. The shock absorbers are rear coil-overs and are exposed as well. The footpegs, brake, and shift lever are mid-mounted for comfort. A Harley-Davidson Smart Security System with a hands-free security fob is an available option.

The Street Bob's valves are pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. The engine is also two valves per cylinder and the displacement is 96 cubic inches. The compression ratio on this Harley is 9.2:1. The air cleaner is conveniently washable. The lubrication system on the bike is pressurized and the drive train is dry-sump.

The Street Bob's drive chain is a 34/46 ratio. The clutch is a wet multi-plate. The transmission is the standard 6-Speed Cruise Drive. The chassis on the bike features a mild steel, tubular frame with a rectangular section backbone that is stamped, cast, and forged. The swing-arm is a mild steel as well with rectangular tub sections and stamped junctions. It is also MIG welded. The front forks on the harley motorcycle are 49mm. They are polished aluminum with a triple clamp and dual-rate springs. The rear shocks are coil-overs. The wheels are black, laced steel. The brake calipers on the bike are 4-piston with a fixed front. The rear calipers are 2-piston and free floating. The rotors are uniform expansion. On the front, the rotors are free floating.

The performance on the Harley Davidson Street Bob offers 92 ft. lbs of torque at 3000 rpm. The fuel economy on this particular model is 35 mpg city and 54 mpg highway. In regards the to electric aspect of the motorcycle, the battery is a sealed, maintenance free, 12 volt. The charger is a three-phase, 40 amp system. The starter on the bike is electric with a solenoid shift motor engagement. The headlamps are halogen with a 55-watt low beam and 60-watt high beam. Indicator lamps on the Harley will flash warnings such as neutral, low fuel, low oil pressure etc.

Ground clearance on this Harley is 4.92 in. The rake is a reasonable 29 degrees. The fuel capacity of the Street Bob is 4.70 gallons. The oil capacity is 3 quarts and the transmission capacity is 1 qt. The color options on the Street Bob are Vivid Black, Black Denim, Black Ice Denim, and Red Hot Sunglo.

Written on Feb 7, 2011 by Nicholas Ciaccio, Chief Editor
