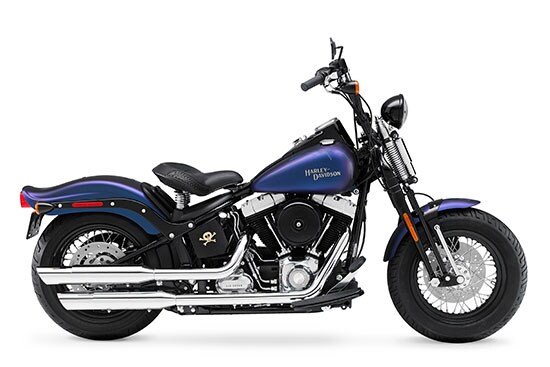

The 2010 Harley Davidson Cross Bones embodies a timeless rugged look that is sure to excite any full-blown gear head. The bike sports a front end reminiscent of the post-war bobber era. The rear suspension is hidden and therefore allows the bike to retain a clean look. The tight packaging of the engine and frame means the rider can feel the bikes power at full capacity.

The engine of the Cross Bones is powder-coated black. A deluxe exhaust with slash-cut mufflers comes standard. The Harley comes with a gloss-black painted front end with chrome springs. The oil tank on the bike is tricked out with a Willie G. signed skull graphic. The tank console is gloss black with a retro speedometer face. The mini-ape handlebar is painted gloss-black as well. The solo seat has springs for a vintage look. The air cleaner cover is gloss-black and the rear fender has black supports.

The Cross Bones' engine is an air cooled, Twin Cam 96BTM. The valves are overhead with hydraulic, self-adjusting lifters. They are also pushrod-operated. There are two valves per cylinder. The displacement of the Cross Bones' engine is 96 cubic inches. The compression ratio is 9.2:1. The fuel system is the Electronic Sequential Port Fuel Injection. The air cleaner on the bike is fiber element and is washable. The lubrication system is pressurized and dry-sump. The clutch on the Cross Bones is multi-plate as well as wet. The transmission is the 6-Speed Cruise Drive.

The chassis on the 2010 Cross Bones has a mild steel tubular frame. It also comes with a rectangular section backbone and stamped, cast, and forged junctions. The chassis has forged fender supports and is MIG welded. The swingarm on the Cross Bones is m ild steel with round tube sections and forged junctions and is MIG welded. Rear shocks are hidden, horizontal- mounted, and are coil- over. The wheels are black laced steel. The brake calipers are single piston front and 2-piston rear. The rotor type is patented and has uniform expansion.

The engine torque on the 2010 Harley Davidson Cross Bones is rated at 93.67 lbs. at 3000 rpm. The fuel economy on the Cross Bones is 35 city and 54 highway. The battery is a sealed, maintenance-free 12-volt with three-phase charging. The headlamp is halogen and displays a 55-watt low beam and 60-watt high beam. Dimensions on the bike include a length of 90.50 inches, an overall width of 38.10 inches, and an overall height of 52.60 inches. Ground clearance is 4.90 inches, rake is 32.5 degrees, and fork angle is 24.2 degrees.

Tires on the Cross Bones are Harley-Davidson series Dunlop's with bias black wall?s in the front and radial black wall's in the rear. The fuel capacity on the bike is 5 gallons, the oil capacity is 3.50 quarts, and the transmission capacity is 1 quart. Color options for the 2010 Harley Davidson Cross Bones include Vivid Black, Brilliant Silver Pearl, Black Denim, and Black Ice Denim.

Written on Feb 7, 2011 by Nicholas Ciaccio, Chief Editor
