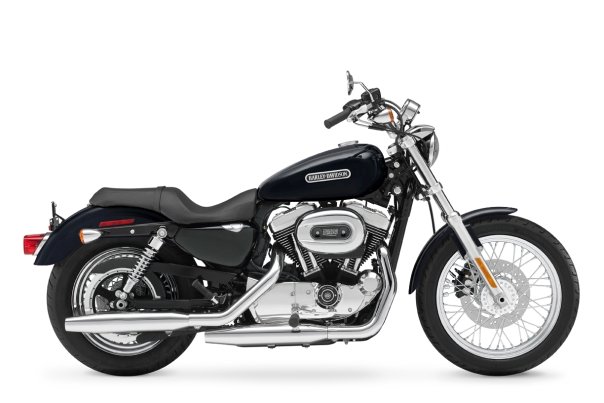

2010 Harley-Davidson 1200 LowThe 2010 Harley Davidson Sportster 1200 Low offers sufficient performance, solid agility, and has the characteristics of an easy to handle motorcycle. Beginners would most likely benefit from investing in this bike. It will give them the confidence to step up to a bigger bike in the future. Features such as an easy to use clutch and comfortable seat will put newcomers at ease.
View Our Inventory or Call Us Today! 1-866-751-2695
The Harley Sportster 1200 Low has a black powder-coated engine with chrome covers. The bike?s chrome exhaust has dual staggered shorty mufflers. The rear fender fully covers the back of the motorcycle and has black supports. A one-piece, two-up Sportster Classic seat with a narrow nose and low profile adorns the bike. The headlamp body is black with a chrome visor and a chrome trim ring. A stainless steel, pullback handlebar rests on a chrome one-inch riser. The speedometer is mounted on the handlebar for convenience.
The engine on the Sportster 1200 Low is the air-cooled, Evolution. The valves are pushrod-operated, overhead with hydraulic, self-adjusting lifters. There are two valves per cylinder. Displacement on the engine is rated at 73.30 cubic inches. Compression ratio is 9.7:1. The fuel system is Harley's Electronic Sequential Port Fuel Injection. The air cleaner is the paper cartridge type. The lubrication system is dry-sump. The clutch is a wet, multi-plate. The transmission is a 5 speed.
The chassis on the Harley-Davidson Sportster 1200 Low consists of a mild steel, tubular frame that includes circular sections and cast junctions. The swingarm on the bike is mild steel with rectangular tube sections and stamped junctions. It is MIG welded. The front forks are 39 mm. The rear shocks are coil-over and are preload dual-adjustable. The brakes have dual-piston calipers in the front and single-piston calipers in the rear. Wheels are black, 13-spoke cast aluminum.
The torque produced from the Harley Sportster 1200 Low is 79 ft. lbs. at 4000 rpm. Fuel economy is rated at 42 city and 57 highway. This 2010 Harley uses a sealed, maintenance-free battery that is 12 volts and uses single-phase charging. The starter is electric with solenoid shift motor engagement. The headlamp is a halogen that displays a 55-watt low beam and 60-watt high beam. Indicator lamps flash low oil pressure, engine diagnostics, low fuel warning, low battery etc. The dimensions of the bike include a length of 89.10 inches, an overall width of 35.20 inches, and an overall height of 46.80 inches. Ground Clearance is 4.40 inches. Rake is 29.6 degrees and fork angle is 29.6 degrees.
The Sportster 1200 Low uses Dunlop Harley-Davidson Series, black wall tires. The fuel capacity on the bike is 4.50 gallons, oil capacity is 2.80 quarts, and transmission capacity is 1 quart. Color options include Vivid Black, Flame Blue Pearl, and Red Hot Sunglo. The only two-tone color available on this motorcycle is the Scarlet Red/Vivid Black. Custom colors include Merlot Sunglo/ Cherry Red Sunglo and White Ice Pearl/ Black Ice Pearl.
Written on Feb 7, 2011 by Nicholas Ciaccio, Chief Editor
